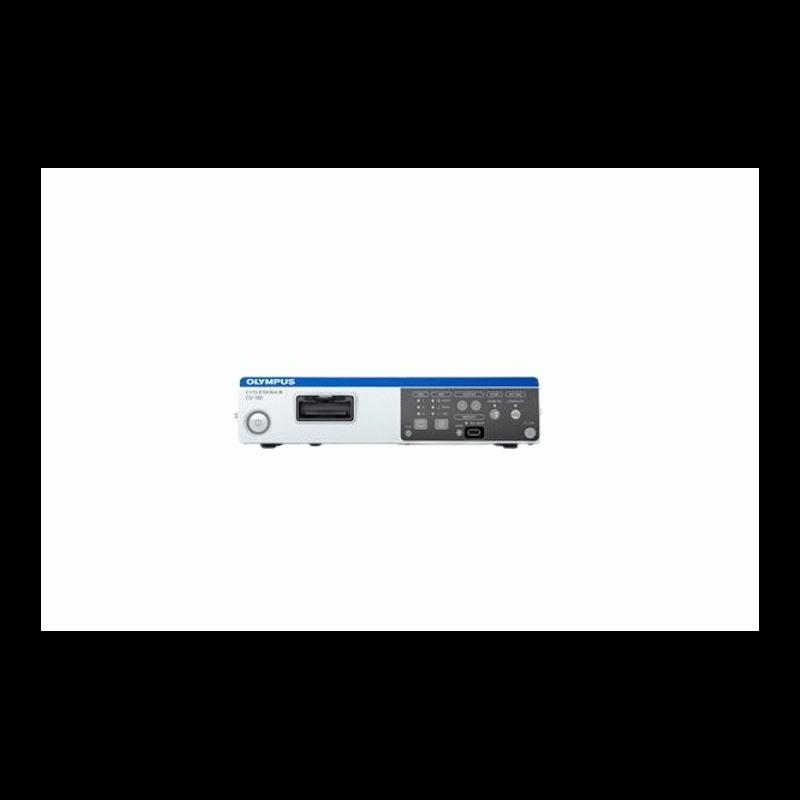

Olympus EVIS EXERA III CV-190 Video System Center (Video Processor)

The Olympus EVIS EXERA III CV-190 is a video system center (video processor) that provides video processing for advanced endoscopy and easy access to EVIS EXERA III endoscope features.
It delivers improved image processing with reduced noise and halation and improved color contrast for clearer visualization.
Narrow Band Imaging (NBI) on the EVIS EXERA III 190 Series is designed for significantly increased brightness and up to twice the viewable distance in the lumen versus prior generations.
Pre-Freeze automatically selects the sharpest still image to improve still capture efficiency.
For your monitors and recording infrastructure, the CV-190 supports multiple outputs including HD-SDI, DVI, DV (IEEE 1394), and analog HDTV/SDTV.

---

Overview

The CV-190 is the core video processing component of the EVIS EXERA III system, designed to illuminate, enhance, display, record, and transmit endoscopic images when used with compatible Olympus endoscopes, light sources, monitors, and documentation equipment.

---

Why clinicians choose the CV-190

Image quality improvements that matter in the procedure room

• Enhanced color reproduction, minimized image noise, and reduced halation for improved image quality.

• Brighter NBI performance (system feature description) designed to increase usable viewing distance.

Still-image capture made easier

• Pre-Freeze automatically selects the clearest still image from moments before the freeze action.

Workflow and ergonomics

• Picture-in-picture and index functions to support observation and room ergonomics.

• One-touch connection design (waterproof connector) that enables one-step connection to the light source and avoids a separate scope cable for the video processor.

---

Outputs and connectivity

Choose the signal path that fits your monitors and documentation stack.

HD / SD signal outputs (manufacturer listed):

• Analog HDTV: RGB or YPbPr (1080i NTSC/PAL)

• Analog SDTV: composite (VBS), Y/C, RGB (NTSC/PAL), including simultaneous outputs

• Digital: HD-SDI (SMPTE 292M), SD-SDI (SMPTE 259M), DV (IEEE 1394), DVI (WUXGA/1080p/SXGA)

• 16:9 and 16:10 formats for HD monitors

Device linking / expandability (manufacturer listed):

• Link connection to peripheral devices to simplify cabling and accelerate transmission speed; Olympus documentation system supports networking expandability.

---

Compatibility

The CV-190 is listed as compatible with multiple Olympus scope series, including EVIS EXERA III 190 Series and earlier generations (as specified by Olympus).

If you’re replacing a system, include:

• Scope models in use (GI/BF/VISERA series, 190 series, etc.)

• Your existing light source (often paired with CLV-190 in the EVIS EXERA III system)

• Your monitor and recorder inputs (HD-SDI/DVI/etc.)

---

Technical specifications

Power

• Voltage: 100–240 V AC (NTSC) / 220–240 V AC (PAL) (±10%)

• Frequency: 50/60 Hz (±1 Hz)

• Consumption: 150 VA

Size / weight

• Dimensions (W × H × D): 370 × 85 × 455 mm; max 382 × 91 × 489 mm

• Weight: 10.7 kg

Classification

• Protection against electric shock: Class I

---

Intended use

Per the FDA 510(k) summary, the CV-190 video system center is intended to be used with Olympus camera heads, endoscopes, light sources, monitors, EndoTherapy accessories, and other ancillary equipment for endoscopic diagnosis, treatment, and video observation.

---

FAQ

What is the Olympus CV-190?

The CV-190 is an EVIS EXERA III video system center (video processor) that provides video processing for advanced endoscopy and access to EVIS EXERA III endoscope features.

Does CV-190 support NBI and improved image processing?

Olympus describes improved image processing (reduced noise/halation, improved color contrast) and brighter NBI performance with increased viewable distance when used with EVIS EXERA III endoscopes.

What outputs are available for monitors and recorders?

Olympus lists analog HDTV/SDTV outputs plus digital outputs including HD-SDI, SD-SDI, DVI, and DV (IEEE 1394).

What is Pre-Freeze?

Pre-Freeze automatically selects the sharpest still image from a short time window before the freeze action, helping improve still-image captures.

What scope families are compatible?

Olympus lists compatibility with multiple series including EVIS 100/130/140/150, EVIS EXERA 160, EVIS EVIS EXERA II 180, GI/BF/VISERA series scopes, and EVIS EXERA III 190 series.
