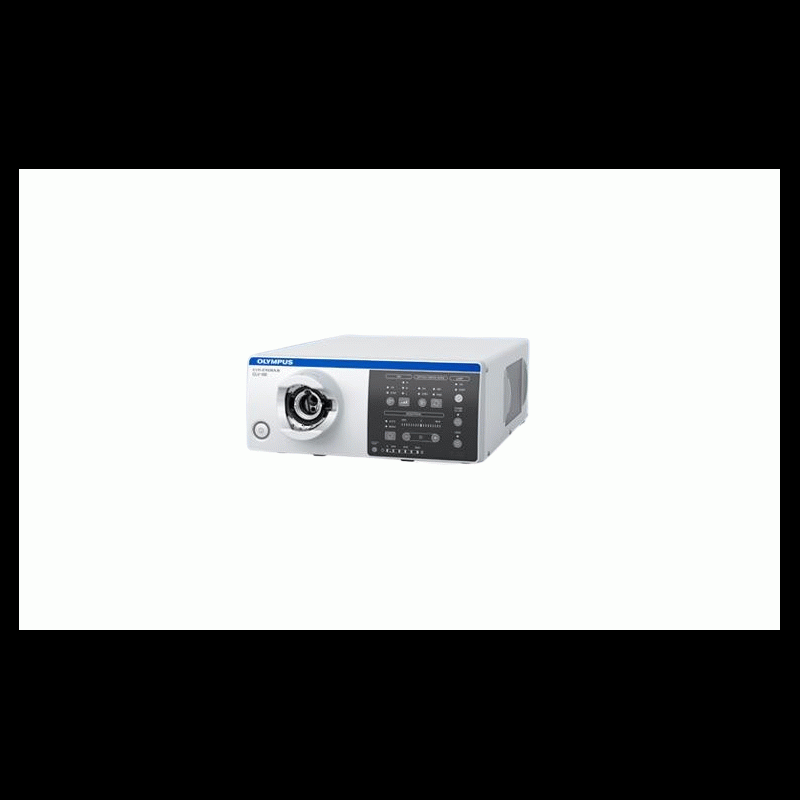

Olympus EVIS EXERA III CLV-190 Xenon Light Source

At-a-glance (compact 8–12 lines)

The Olympus EVIS EXERA III CLV-190 is a 300 W xenon (ozone-free) light source built for EVIS EXERA III endoscopy systems.
It’s designed to make setup faster with a waterproof one-touch connector—enabling one-step scope connection to the light source and removing the need for a separate video cable connection to the video processor.
For image-enhanced exams, Narrow Band Imaging (NBI) is supported, with Olympus noting significantly increased brightness and up to twice the viewable distance in the lumen due to improved lamp design and signal processing.
A redesigned cooling fan helps reduce operating noise compared to previous generations.
Published specs include 100–240 VAC, 600 VA power consumption, and a 19 kg chassis.

---

Overview

Answer capsule:
The CLV-190 is the illumination engine for EVIS EXERA III—delivering xenon light for standard white-light observation and supporting NBI observation when used in the EVIS EXERA III ecosystem.

---

Key benefits (why teams choose the CLV-190)

Brighter NBI performance for enhanced visualization

• NBI observation available on the CLV-190 platform.

• Olympus notes significantly increased NBI brightness and up to 2× viewable distance in the lumen with EVIS EXERA III.

Faster setup and simpler cabling

• Waterproof one-touch connector supports quick connection and eliminates the need for a separate video cable connection to the processor.

• Link connection to peripheral devices (e.g., ScopeGuide or flushing pumps) helps avoid complicated cabling and accelerates transmission speed.

• A redesigned cooling fan helps reduce operating noise compared to prior generations.

---

Illumination & lamp details

Answer capsule:
CLV-190 uses a xenon short-arc lamp for high-intensity illumination with built-in backup lighting.

• Lamp: Xenon short-arc lamp (ozone-free) 300 W

• Average lamp life: ~500 hours continuous use (intermittent use may vary)

• Emergency lamp: Halogen lamp (within mirror) 12 V / 35 W

• Average emergency lamp life: ~500 hours

• Cooling: Forced-air cooling

• Intensity modes: Normal or High intensity

---

Technical specifications

Answer capsule:
Use these specs to confirm fit for your cart, power, and room standards.

Power

• Voltage: 100–240 VAC (±10%)

• Frequency: 50/60 Hz (±3 Hz)

• Power consumption: 600 VA

Size / weight

• Dimensions (W × H × D): 370 × 150 × 476 mm (standard)

• Dimensions (W × H × D): 390 × 162 × 551 mm (maximum)

• Weight: 19 kg

Classification

• Protection against electric shock: Class I

---

Intended use (regulatory)

Per the FDA 510(k) summary for the EVIS EXERA III system, the CLV-190 Xenon Light Source is intended to be used with Olympus endoscopes, a video system center, and other ancillary equipment for endoscopic diagnosis, treatment, and video observation.

---

FAQ

What is the Olympus CLV-190?

The CLV-190 is a xenon light source for the EVIS EXERA III endoscopy system.

Does CLV-190 support Narrow Band Imaging (NBI)?

Yes—NBI observation is available, and Olympus states NBI is significantly brighter with up to twice the viewable distance in the lumen in EVIS EXERA III.

What lamp does it use and what is expected lamp life?

It uses a 300 W xenon short-arc lamp (ozone-free) with published average life of ~500 hours continuous use; the unit also includes an emergency 12 V / 35 W halogen lamp (~500 hours).

What are the power requirements?

Published power specs are 100–240 VAC, 50/60 Hz, and 600 VA consumption.

What makes setup faster vs older systems?

Olympus highlights a waterproof one-touch connector for one-step connection, plus link connections that simplify cabling to peripherals.
