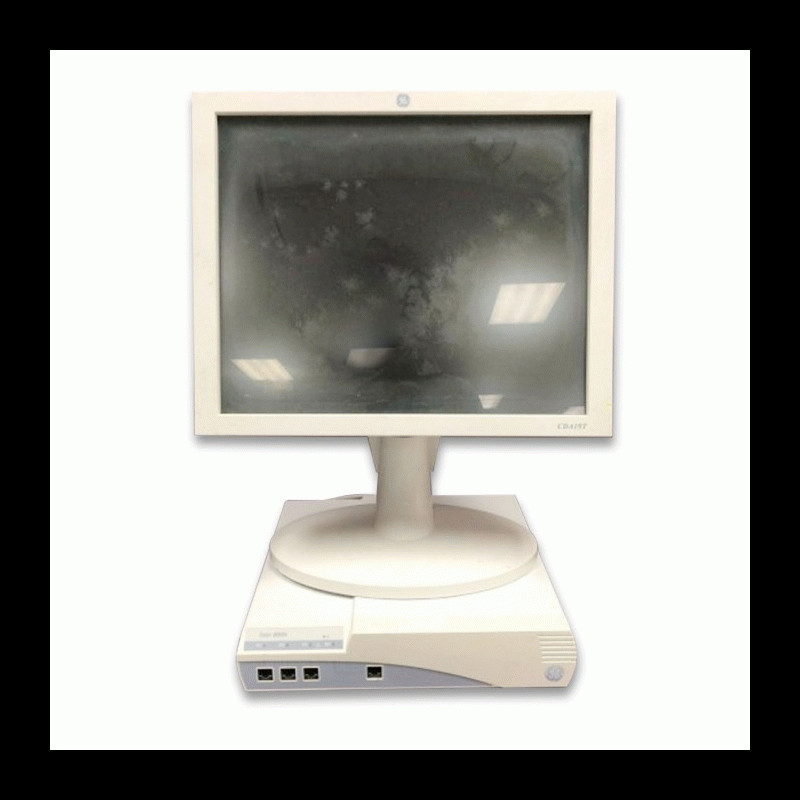

The Solar® 8000i is a modular, high-acuity patient monitoring system that enhances clinical decision-making with a constant flow of quality information. It provides robust clinical standards including core vital signs, advanced cardiac care andventilation evaluation for the OR, ICU and NICU care areas. The Solar 8000i offers an extensive selection of modules – from the new CARESCAPE™ Patient Data Module and the Tram® multiparameter module to individual parameter measurement modules – so you can quickly and cost-effectively adapt your monitor to a broad range of care needs. When using the Patient Data Module or TRAM module in conjunction with the Transport Pro display, a stationary monitoring setting is transformed into a portable monitoring solution, allowing critical data to remain with the patient throughout the hospital.

GE Solar 8000 Specifications

Dimensions

Height 3.2” (8.1 cm)
Width 13.9” (35.4 cm)
Depth 13.2“ (33.4 cm)
Weight 12.3 lb (5.6 kg)

Display Characteristics

Display size 15" - 19" typical
Display resolution 1024 × 768
Display types Analog and digital flat panel, CRT displays
Sweep speed 25mm/sec typical (User has the ability to vary speeds of individual traces)
Touch screen Utilizes ELO graphics and surface acoustic wave technology
Frequency Limited by input response of data response acquisition device
Number of traces 1 to 8
Display organization Prioritized by parameter Waveform display Full, individual or CRG+ Options Information window Displays non-real-time information without obstructing the display of real-time patient information
Number of seconds/trace 6.5 secs. typical (Can differ if user varies speeds of individual traces)

Storage Conditions

Temperature -40°C to 70°C (-40°F to 158°F)
Relative humidity 15% to 95% (non-condensing)

Operating Conditions

Temperature 0°C to 40°C (32°F to 104°F)
Relative humidity 15% to 95% (non-condensing)

Power Consumption

Heat Dissipation 341 Btu/hr (100 watts)
