Erbe ECO2 Plus Insufflator
Bio-Certified Refurbished | Part #: ECO2 Plus

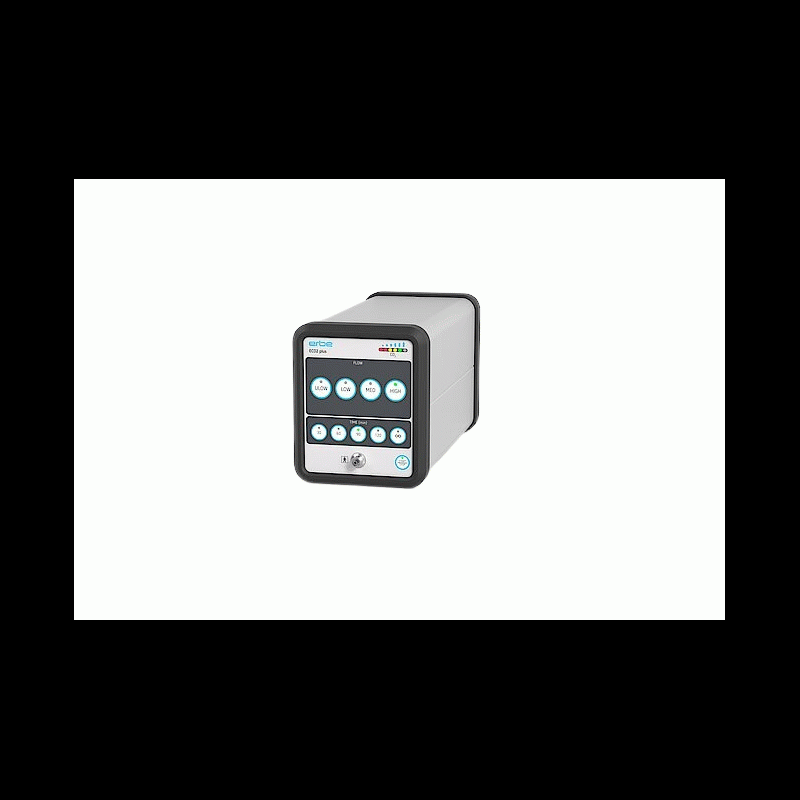

Erbe ECO2® plus CO₂ Endoscopic Insufflator (REF 2N100-068)
The Erbe ECO2® plus is a CO₂ endoscopic insufflator designed for diagnostic and therapeutic GI endoscopy.
It delivers CO₂ via a GI endoscope—a clinically supported approach associated with reduced patient discomfort and faster post-procedure recovery compared with air insufflation (per Erbe’s cited literature).
Choose from four flow settings optimized for endoscopy: ULOW 0.8 L/min, LOW 1.5 L/min, MED 2.5 L/min, HIGH 3.5 L/min.
Safety features include pressure relief valves, audible alarms, and timed gas shut-off.
An adjustable timer supports 30/60/90/120 minutes plus a continuous option (∞), and a CO₂ level indicator shows remaining tank gas at a glance.
Overview
ECO2® plus is built to make CO₂ insufflation in GI endoscopy straightforward—clear controls, selectable flow rates, and safety shutoffs that support consistent workflow in the procedure room.
Key features & benefits
Designed for usability and patient-friendly insufflation, ECO2® plus combines simple flow control with built-in safety.
-
CO₂ insufflation for GI endoscopy (Erbe cites literature supporting reduced discomfort and recovery time).
-
Four selectable flow rates optimized for diagnostic and therapeutic endoscopic procedures.
-
Safety protections: pressure relief valves, audible alarms, timed gas shut-off.
-
Adjustable timer (30/60/90/120 minutes) + continuous option (∞).
-
CO₂ level indicator to visualize remaining gas in the tank.
Flow rate settings (easy selection for endoscopy)
Pick the flow that matches the procedure and patient needs without overcomplicating the setup.
-
ULOW: 0.8 L/min (proprietary ultralow flow)
-
LOW: 1.5 L/min
-
MED: 2.5 L/min
-
HIGH: 3.5 L/min
Infection prevention & tubing compatibility
ECO2® plus is optimized for ERBEFLO disposable tubing solutions intended to help reduce cross-contamination risk.
-
Optimized for ERBEFLO CleverCap® CO₂ or ERBEFLO AeroRinse® CO₂ Tubing Sets (Erbe positions these to reduce cross-contamination and infection risk).
What’s included (REF 2N100-068)
Confirm what ships with your unit to avoid surprises.
-
ECO2® plus CO₂ Endoscopic Insufflator (REF 2N100-068)
-
Includes AC power cord and CO₂ yoke and hose / CO₂ hose (as listed by Erbe).
Common add-ons (as applicable):
-
Endoscopic Insufflator Cart: REF 2N100-060
-
CO₂ Gas Regulator (required for E-cylinder tanks): REF 2N100-082
Technical specifications
Use these specs to confirm fit for your cart and facility power.
-
Power supply: 100–240 VAC
-
Frequency: 50/60 Hz
-
Max power consumption: 110 VA
-
Fuse: T 1A / 250V
-
Dimensions (W × H × D): 5.1” × 6.3” × 13”
-
Weight: 11 lbs
-
Standards: EN 60601-1, EN 60601-1-2; classification includes Class I, Type BF, drip-proof equipment, continuous operation.
FAQ
What is the Erbe ECO2® plus used for?
It’s a CO₂ endoscopic insufflator intended for diagnostic and therapeutic GI endoscopy, delivering CO₂ via a GI endoscope.
What flow rates does ECO2® plus offer?
Four selectable settings: 0.8, 1.5, 2.5, and 3.5 L/min (ULOW/LOW/MED/HIGH).
What safety features are built in?
Erbe lists pressure relief valves, audible alarms, and timed gas shut-off.
Does it have an automatic shut-off timer?
Yes—timer settings include 30/60/90/120 minutes plus a continuous option (∞).
What accessories/tubing does it use?
Erbe notes it is optimized for ERBEFLO CleverCap® CO₂ and ERBEFLO AeroRinse® CO₂ tubing sets.
