Sapphire Multi-Therapy Infusion Pump Manual

Sapphire is based on a unique combination of patented Flow Control Technology, innovative hardware design, intuitive touch-screen and software control, and low total cost of ownership. This makes it the perfect solution for a wide range of applications in different industries.

The Sapphire infusion pump is a reliable and easy-to-use device that is perfect for a wide range of medical infusion needs. With its robust design and built-in adaptability to evolving requirements, the Sapphire infusion pump is a great choice for those looking for a reliable and long-lasting infusion pump.

The Sapphire™ advanced multi-therapy infusion pump is designed for a variety of treatments, including PCA, TPN, Continuous, Piggyback, Intermittent, and Epidural.

The Eitan Sapphire system is simple to operate with an intuitive user interface. The pump can be programmed to deliver a wide range of infusion rates and volumes. The system can also be used with a variety of infusion sets and catheters.

The Sapphire Multi-Therapy infusion system is a versatile and reliable solution for a variety of clinical needs. It is easy to use and provides a high level of functionality in a compact and lightweight package.

Includes:

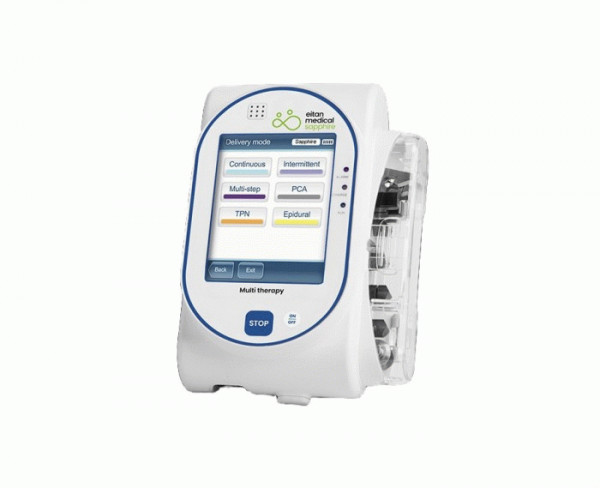

(1) Sapphire Multi-Therapy Pump
(1) Power Supply
(1) Mini Cradle
(1) Mini Cradle Knob Key
(1) User Manual

Specifications:

Pump Type: Volumetric, single-channel, touch screen pump, Eitan Medical Flow Control
Multi-Therapy Infusion Modes: Continuous, Multi-step, TPN, Intermittent, PCA, Epidural, and Secondary (Piggyback)
Dimensions: (H x W x D) 143 x 96 x 49 mm (5.63 x 3.78 x 1.93 in)
Transportation: Approved for air and ground medical transportation**
Weight: 418 g (14.7 oz) without battery
Touch Screen: 3.2” color portrait QVGA (64K colors)
Degree of Protection Against Ingress of Water and Dust: IP24 splash/dust standard according to IEC 60601-1-11
Battery: Rechargeable Li-lon battery 7.4V 1960mA/h
Battery Operation Time: ~24 hrs @ 125 mL/h
Power Source: AC adaptor 100 – 240 VAC 50 – 60 Hz
Volume (VTBI): 1 – 9,999 ml with increments of 0.1 mL
Flow Rate: 0.1-999 mL/h with increments of 0.1 mL/h
PCA Flow Rate: Basal rate 0.1-99.9 mL/h, Bolus rate up to 600 mL/h
Epidural Flow Rate: Basal rate 0.1-25 mL/h, Bolus / Dose rate 125mL/h or 200 mL/h
KVO Rate: Up to 20 mL/h with increments of 0.1 mL/h
Flow Rate Accuracy: ± 2.5% according to IEC 60601-2-24
Disposable Set: Automatic anti-free-flow set
Downstream Occlusion: Up to 17.4 PSI (1.2 Bar)
Prime: Manual or automatic priming (600 or 900 mL/h)

* sapphire is manufactured by Eitan Medical ltd.

** Eitan Medical Sapphire Multi pump is flight approved only in the US
