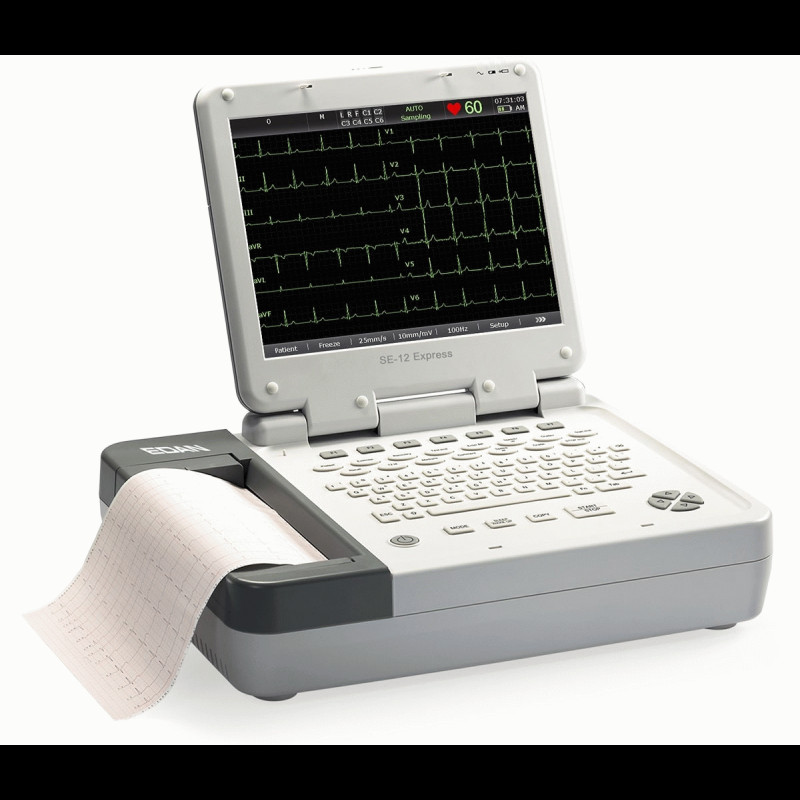

Edan SE-12 Express EKG Machine

New | Part #: SE-12E | Warranty: 2 years

$5,152.00 $3,680.00

Free shipping when delivered within the contiguous US (excludes PR, AK and HI)

The Edan SE-12 Express ECG system is a powerful 12-channel system that offers a comprehensive range of features for stress tests, resting ECG, and exercise ECG. Its full alphanumeric keyboard and intuitive shortcut function keys make it easy to use and navigate, allowing you to quickly and accurately capture and analyze ECG data. With its advanced technology and user-friendly design, the SE-12 Express is the perfect choice for any medical facility.

The Edan SE-12 Express 12-channel ECG is a powerful tool for medical professionals, providing comprehensive support for both resting and exercise ECG. This smart ECG series from Edan offers a range of features, including a high-resolution color display, a built-in printer, and a comprehensive data management system. With its intuitive user interface and advanced signal processing technology, the SE-12 Express is an ideal choice for any medical facility.

Feature Overview

  • Main unit: twelve channel ECG, 12.1" touch screen, full keyboard
  • 120 seconds waveform freeze and review
  • Auto Analyzing and Diagnostic Software (Interpretation)
  • Preview and printing for waveform and analysis
  • Built-in rechargeable Lithium battery, AC/DC supply
  • Built-in thermal printer


  • 12.1 inch high-resolution foldable color TFT touch-screen
  • Specific function keys for Exercise ECG test
  • Various treadmills or bicycles and Suntech tango+ exercise blood pressure monitor supported
  • Customized exercise protocols
  • ST analysis and reports
  • Complete digital filters, resisting baseline drift, AC and EMG interference
  • Ethernet and RS-232 interface for data transmission to PC
  • Built-in rechargeable Lithium battery
  • Sleep mode for saving energy and extending LCD life
  • Real-time waveform freezing
  • 120 seconds ECG waveform reviewable
  • Waveforms and auto-diagnosis results preview before printing
  • Automatic arrhythmia detection and recording
  • 200 ECGs in internal memory
  • Automatic measurement and interpretation tested with authoritative CSE database
  • Heart rate variability (HRV) analysis
  • PC-based data management and measurement software "Smart ECG Viewer" (Option)
  • Trolley and cable bracket (Option)
