Overview

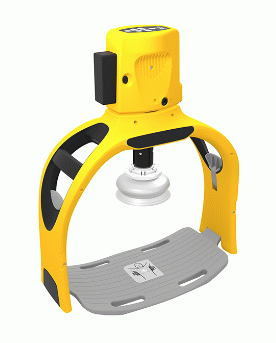

The Defibtech Lifeline ARM XR helps professional rescuers transition from manual to mechanical CPR quickly and maintain consistent compressions over extended durations, particularly when fatigue, staffing limits, or transport make manual CPR difficult to sustain.

When the call turns into a 20 to 40 minute resuscitation, or you’re moving the patient, can your team keep perfect compressions without interruption?

How ARM XR helps:
ARM XR is designed to deliver consistent rate and depth without provider fatigue, supporting more predictable compressions during prolonged events and transport.

Key features

• Two compression modes: Continuous; 30:2 protocol with a 3-second ventilation pause and audio indication.

• Controlled CPR parameters: 100–110 ±1 CPM, 50% ±5 duty cycle, depth range 1.5–2.4 in with target 1.8–2.2 in (based on chest geometry).

• Chest rise allowance: pressure pad “release” up to 0.6 in (1.5 cm) each compression.

• Rugged, transport-ready: device sealing rated IP43 (with battery pack installed).

• Connectivity: device can send data to a host PC via Bluetooth module or wired USB.

Patient fit

Lifeline ARM XR is intended for adult patients that fit the following specifications:

• Max chest width: 17.5 in (44.4 cm)

• Chest height: 7.4–12.7 in (18.8–32.3 cm)

• The spec sheet states use is not restricted by patient weight.

Technical specifications

Compression

• Frequency: 100–110 ±1 CPM

• Duty cycle: 50% ±5%

• Depth: 1.5–2.4 in (38–60 mm) (±0.1 in / ±2 mm)

• Target depth: 1.8–2.2 in (46–56 mm) (based on chest geometry)

Power

• AC adapter: 100–240 VAC, 50/60 Hz; output 24.0 VDC (±5%)

• Battery: 18.0 V, 5600 mAh Li-ion; nominal run time ~1 hour

• Charge time: <3 hours in device; <2 hours using optional external charging station (single battery).

Physical

• Weight (with battery): 16.4 lb (7.5 kg)

• Size (assembled): 25 × 20 × 9 in; in carrying case: 21 × 19 × 11 in

What’s included:

• Compression Module

• Frame

• Backboard

• Battery Pack

• Backpack Carry Case

• Patient Pad (3)

• Stabilization Strap

• Power Module

• Quick Start Guide

• User Manual

FAQ

What is the Defibtech Lifeline ARM XR?

It’s an automated chest compression device (ACC) designed to deliver continuous, consistent compressions for adult cardiac arrest patients, especially during prolonged resuscitations and transport.

What compression modes does ARM XR provide?

Continuous Mode and a 30:2 Protocol Mode with an audio-indicated ventilation pause.

What are the compression rate and depth specifications?

Rate is 100–110 ±1 CPM; depth range 1.5–2.4 in, with target 1.8–2.2 in based on chest geometry from piston position.

How long does the battery run?

The spec sheet lists ~1 hour (nominal patient).

Is there a recall for RMU-2000 ARM XR?

The FDA posted a recall notice for certain RMU-2000 ARM XR units due to a motor issue that may cause the device to stop compressions; follow the FDA/manufacturer instructions and verify serial numbers.
